符合车规要求的高耐温等级功率电感—AWPE系列
功率电感AWPE系列，操作温度范围：-55℃~150℃，具有优异的温度特性，高耐流低损耗，满足AEC-Q200部品可靠性标准，适用于车载功放、中控、车灯等车载电子设备的电源管理系统。
电动化、网联化、智能化、共享化是汽车产业的发展趋势，汽车电子技术的创新与应用，推动了汽车产业的发展。车载电子设备的稳定运行离不开高可靠、高效的电源系统，在以DC/DC转换器为主的电源系统中，起储能滤波作用的电感器是关键器件之一，影响着电源系统的可靠性与稳定性。
组装式设计，生产工艺简单，可靠性高
磁屏蔽设计，降低电感漏磁引起的干扰
优异的温度特性
高饱和特性，低损耗
车载影音系统、车灯等车载电子设备的电源管理系统
其他对部品有较高可靠性要求的应用领域

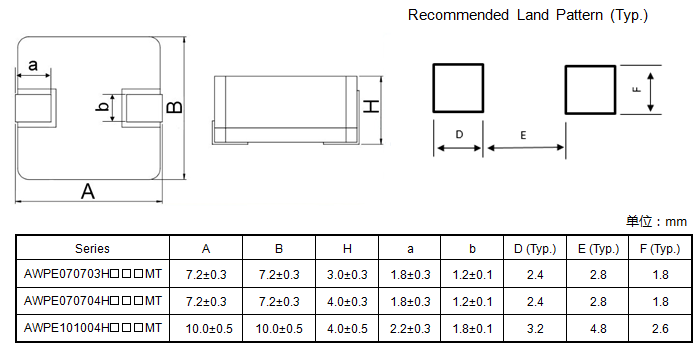

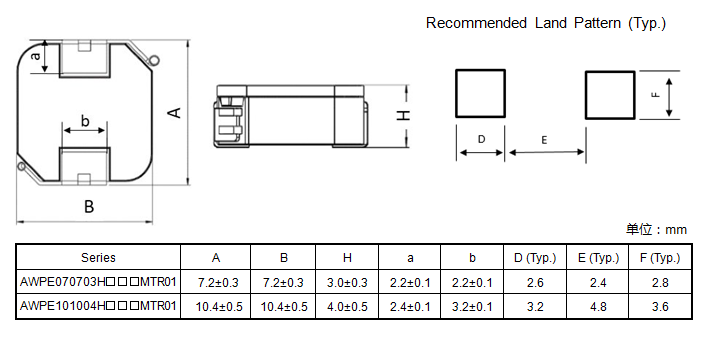

AWPE070703H Series
Part Number 型号 | Inductance 电感量 | DC Resistance 直流电阻 | Saturation Current 饱和电流 | Heat Rating Current 温升电流 |
@0.1MHz | Max. | Typ. | Max. | Typ. |
Units单位 | μH | mΩ | A | A |
Symbol符号 | L | DCR | Isat | Irms |
AWPE070703H1R0MT | 1.0±20% | 6.0 | 5.0 | 14.0 | 15.8 | 14.0 |
AWPE070703H1R5MT | 1.5±20% | 12.0 | 10.0 | 11.6 | 13.1 | 9.5 |
AWPE070703H2R2MT | 2.2±20% | 14.2 | 11.8 | 9.2 | 10.4 | 7.2 |
AWPE070703H3R3MTR01 | 3.3±20% | 32.4 | 27.0 | 7.1 | 7.6 | 6.0 |
AWPE070703H4R7MTR01 | 4.7±20% | 38.6 | 32.2 | 5.4 | 6.1 | 5.6 |
AWPE070703H5R6MTR01 | 5.6±20% | 52.0 | 43.3 | 5.1 | 5.8 | 4.2 |
AWPE070703H6R8MTR01 | 6.8±20% | 56.9 | 47.4 | 4.8 | 5.4 | 4.0 |
AWPE070703H8R2MTR01 | 8.2±20% | 66.0 | 55.0 | 4.6 | 5.1 | 3.4 |
AWPE070703H100MTR01 | 10±20% | 72.6 | 60.5 | 4.1 | 4.6 | 3.2 |
AWPE070703H150MTR01 | 15±20% | 84.0 | 70.0 | 3.0 | 3.7 | 2.4 |
AWPE070703H220MTR01 | 22±20% | 144 | 120 | 2.6 | 3.2 | 2.2 |
AWPE070704H Series
Part Number 型号 | Inductance 电感量 | DC Resistance 直流电阻 | Saturation Current 饱和电流 | Heat Rating Current 温升电流 |
@0.1MHz | Max. | Typ. | Max. | Typ. |
Units单位 | μH | mΩ | A | A |
Symbol符号 | L | DCR | Isat | Irms |
AWPE070704H1R0MT | 1.0±20% | 5.0 | 4.2 | 13.6 | 15.3 | 14.0 |
AWPE070704H1R5MT | 1.5±20% | 6.2 | 5.2 | 11.2 | 12.6 | 11.5 |
AWPE070704H2R2MT | 2.2±20% | 9.0 | 7.5 | 9.2 | 10.4 | 9.5 |
AWPE070704H3R3MT | 3.3±20% | 10.3 | 8.6 | 8.1 | 8.6 | 8.0 |
AWPE070704H4R7MT | 4.7±20% | 21.6 | 18.0 | 6.0 | 6.8 | 6.2 |
AWPE101004H Series
Part Number 型号 | Inductance 电感量 | DC Resistance 直流电阻 | Saturation Current 饱和电流 | Heat Rating Current 温升电流 |
@0.1MHz | Max. | Typ. | Max. | Typ. |
Units单位 | μH | mΩ | A | A |
Symbol符号 | L | DCR | Isat | Irms |
AWPE101004HR50MT | 0.5±20% | 2.1 | 1.8 | 22.6 | 25.4 | 22.0 |
AWPE101004H1R0MT | 1.0±20% | 3.0 | 2.5 | 17.6 | 19.8 | 19.5 |
AWPE101004H1R5MT | 1.5±20% | 3.8 | 3.2 | 16.0 | 18.0 | 16.5 |
AWPE101004H2R2MT | 2.2±20% | 7.0 | 5.8 | 12.8 | 14.4 | 12.0 |
AWPE101004H3R3MT | 3.3±20% | 8.2 | 6.8 | 10.4 | 11.6 | 9.5 |
AWPE101004H4R7MT | 4.7±20% | 12.6 | 10.5 | 8.4 | 9.4 | 8.6 |
AWPE101004H5R6MT | 5.6±20% | 14.4 | 12.0 | 8.0 | 9.0 | 8.0 |
AWPE101004H6R8MTR01 | 6.8±20% | 30.0 | 24.9 | 7.4 | 8.4 | 6.5 |
AWPE101004H8R2MTR01 | 8.2±20% | 33.2 | 27.6 | 6.8 | 7.6 | 6.4 |
AWPE101004H100MTR01 | 10±20% | 39.6 | 33.0 | 5.5 | 6.1 | 5.7 |
AWPE101004H150MTR01 | 15±20% | 46.8 | 39.0 | 4.5 | 5.1 | 4.6 |
AWPE101004H220MTR01 | 22±20% | 69.8 | 58.2 | 3.7 | 4.1 | 3.6 |
AWPE101004H330MTR01 | 33±20% | 93.6 | 78.0 | 3.1 | 3.5 | 3.2 |
AWPE101004H470MTR01 | 47±20% | 144 | 120 | 2.6 | 3.0 | 2.6 |
AWPE101004H680MTR01 | 68±20% | 216 | 180 | 2.1 | 2.3 | 2.3 |
AWPE101004H820MTR01 | 82±20% | 240 | 200 | 1.9 | 2.1 | 2.2 |
AWPE101004H101MTR01 | 100±20% | 312 | 260 | 1.7 | 1.9 | 2.0 |
